I. Overview

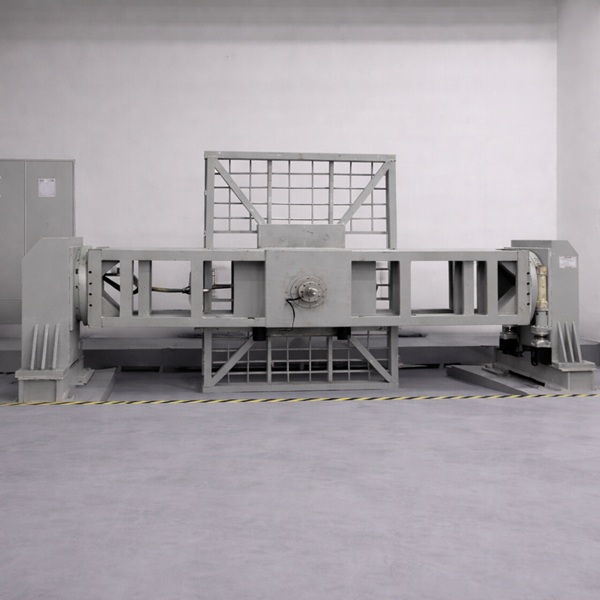

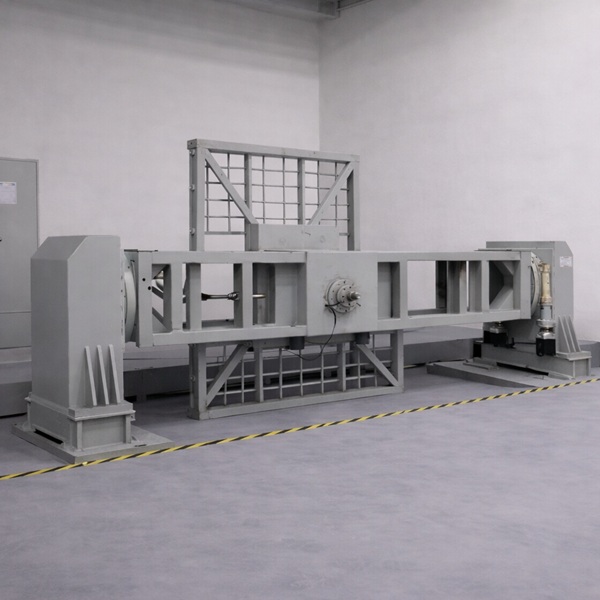

It complies with ISO 12402-3:2015 and GB/T 31476.3-2015 Lithium-ion Traction Battery Packs and Systems for Electric Vehicles - Part 3: Safety Requirements and Test Requirements. The Power Battery Pack Tipping Tester is used to simulate special operating conditions such as steep uphill, steep downhill, rollover and tipping that may occur when battery packs or systems are installed on mobile equipment (automobiles) during use, so as to observe various potential conditions of the battery packs or systems. It simulates all actual operating conditions of battery packs or systems in the laboratory to identify and solve problems, optimize product design and improve product quality. As a dedicated testing device for the safety tests of power battery packs or systems, it is an essential product for battery pack manufacturers, electric vehicle manufacturers, as well as scientific research and testing institutions. The test bench is designed to be aesthetically pleasing, safe and practical, facilitating the installation and fixation of battery packs or systems of various models.

II. Main Technical Parameters

1. Tipping Table Size: Approx. 3000mm (L) × 2500mm (W), subject to actual dimensions

2. Sample Load Capacity: ≥500kg (excluding fixtures, customizable)

3. X-axis & Y-axis Conversion: After the completion of X-axis tipping, the tipping table can be directly rotated by 90° for Y-axis tipping test without adjusting the fixing direction of the battery pack

4. Tipping Table Rotation Speed: Stepless adjustable from 1°/s to 12°/s; Resolution: 0.3°/s; Default speed: 6°/s (configurable via software)

   Rotation Angle: 0~360°

   Rotation Time: 0–99999s

5. Rotation Times: 0–9999 cycles

6. Equipment Dimensions: Approx. 4800mm (L) × 3000mm (W) × 1500mm (H) (excluding pit depth and the 90° direction dimensions of the upper platform)

7. Distance from Tipping Table Center to Ground: Approx. 2.2m, subject to actual dimensions

8. Rotation Speed Resolution: 0.1°/s (exceeds standard requirements)

9. Angle Resolution: ≤0.1° (exceeds standard requirements)

10. Control Accuracy: Tipping speed accuracy controlled within 0.1°/s; Tipping angle accuracy controlled within 0.5°; Time accuracy not less than ±0.1%

11. Operation Modes: Program mode, fixed value mode

12. Sample Size: 2m × 1.4m × 0.5m (maximum size for customer's test samples)

13. Rated Power: Approx. 5 KW

14. Monitoring System: Manually rotatable brand camera

15. Program Control Parameters: Tipping speed, tipping time, tipping angle, tipping cycles, etc. can be set in the program; Tipping speed, tipping time, tipping angle, tipping cycles and intermediate dwell time are editable in program mode

16. Time Control: The tipping table can stop and hold at any angle with stepless adjustable holding time

17. Control Computer: EVOC industrial control computer (installed at a certain distance from the tipping test bench); Display: 20 inches or above

18. Recording Function (Rotation Speed, Rotation Angle, Time, Cycle Number): Max sampling frequency 10Hz; Capable of recording test curves, data, operation records and alarm records for 24 months (both set and detected values); All test curves, operation records and alarm records for any time period can be viewed in detail; Historical test curves can be printed and data reports generated (in Access and Excel formats)
