Product Overview

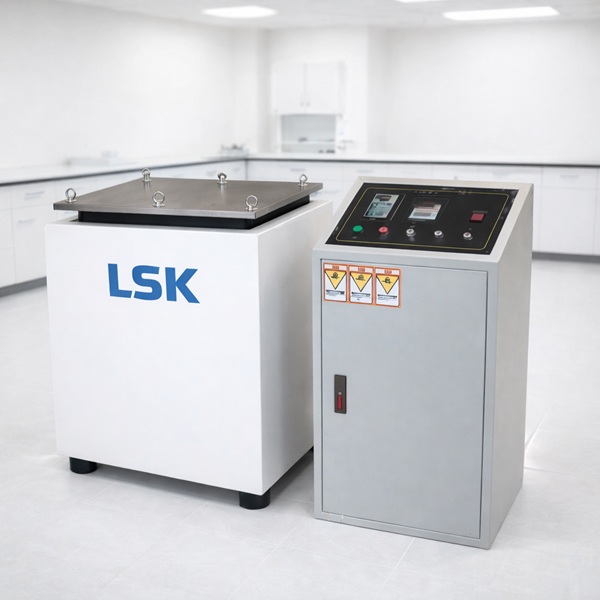

I. Technical Requirements for Power Battery Vibration Tester
It complies with the requirements of test standards including GB/T2900.11-1988 IDT IEC60086-4:2000, SJ/T11169-1998 (or UL1642-2007), SJ/T11170-1998 (or UL2054), MH/T1020-2007 (or UN38.3), GB/T18287-2000, YD/T1268.1-2003, QB/T2502-2000, IEC62281-2004 and QC/T 743-744.
II. Features
Functions include sine wave, frequency modulation, frequency sweeping, programmable operation, frequency multiplication, logarithmic operation, high acceleration, amplitude modulation, time control and full-function computer control (computer and printer optional); it can be connected to a computer for control, storage, recording and printing, and supports simple fixed acceleration/fixed amplitude adjustment.
III. Technical Parameters
Maximum test load: 100kgFrequency modulation function: At any frequency within the frequency range, the maximum acceleration must be<20g and the maximum amplitude <5mmFrequency sweeping function: (Upper frequency/Lower frequency/Time range) can be arbitrarily set to realize true standard reciprocating frequency sweepingProgrammable function: 15 segments, each segment can be arbitrarily set with (frequency/amplitude/acceleration/time) and supports cycle operationFrequency multiplication function: 15 segments with multiple increase, including ① low to high frequency, ② high to low frequency, ③ low to high then to low frequency; cycle operation supportedLogarithmic function: Three modes available including ① low to high frequency, ② high to low frequency, ③ low to high then to low frequency; logarithmic operation and cycle operation supportedVibration tester power: 2.2KW; Amplitude: 0~5mm (adjustable range p-p)Maximum acceleration: 20g; Vibration waveform: Sine waveTime control (s): Arbitrary time setting availableAccuracy: Frequency displayable to 0.01Hz, accuracy of 0.1HzVoltage: 220±20%; Maximum current: 5AVibration table dimension (cm) (L×H×W): Vertical table 50×20×50cm / Horizontal table 50×25×50cmWorking power supply: AC220V 50HZ
