The UAV power test stand features an automated testing system that measures thrust, torque, voltage, current, rotational speed (RPM), and efficiency. It complies with ASTM standards developed by ASTM International (American Society for Testing and Materials)..

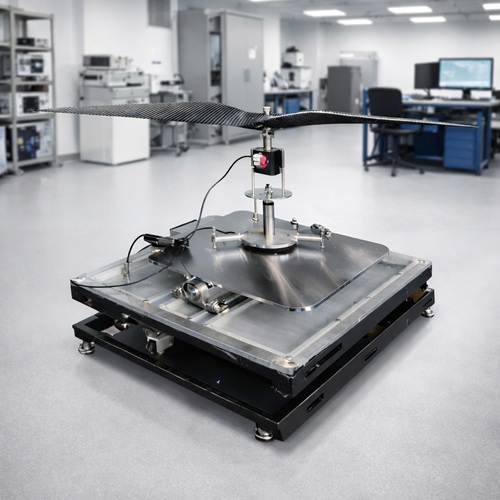

LSK-R30 Motor & Propeller Test Stand is designed specifically for testing motors and propellers for medium-sized UAVs. It can perform torque measurement up to 30 kg of thrust with propellers up to 40 inches. This test stand helps you identify the most efficient UAV propulsion system and extend flight time.
The thrust testing system measures thrust, torque, voltage, current, rotational speed (RPM), and the efficiency of the motor and propeller.
UAV Power & Torque Measurement Specifications
| Item | Specification |
|---|---|
| Recommended propulsion system | Max thrust > 3 kg |
| Max thrust | 30 kg |
| Max propeller size | 40 in |
| Torque | 20 N·m |
| Current range | 0–150 A |
| Voltage | 5–65 V |
| Speed range | 30–15,000 rpm |
