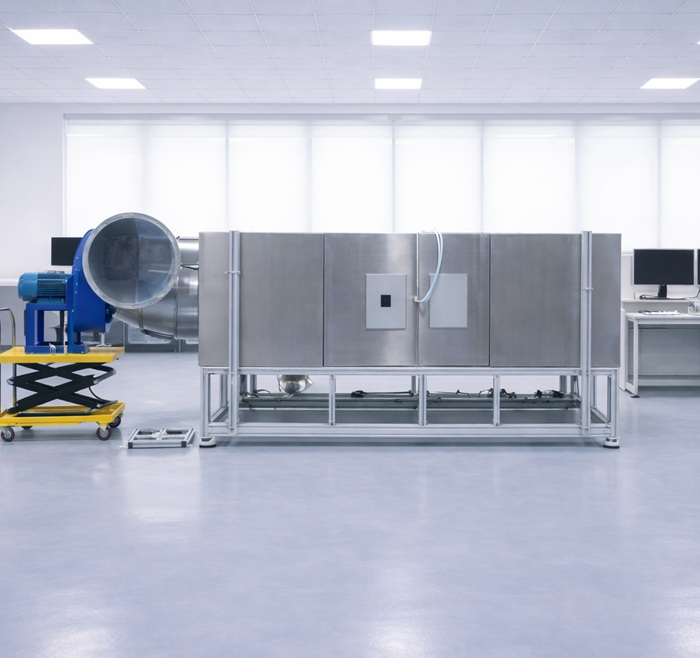

The UAV airflow wind tunnel laboratory mainly consists of the following components: wind chamber structure, air ducting, regulating damper, support frame, pressure-measurement tube cover, and other parts. It can be customized in sizes such as 2 m × 2 m, 3 m × 3 m, 4 m × 4 m, and 5 m × 5 m. The test section size can also be tailored to customer requirements.

Reference Standards

• GB/T 1236-2017

• AMCA 210-2016

The UAV airflow wind tunnel laboratory mainly includes the following sections/components: wind chamber structure, air ducts, regulating damper, supports, pressure-tapping tube cover, etc. Standard sizes such as 2 m × 2 m, 3 m × 3 m, 4 m × 4 m, and 5 m × 5 m are available, and the specific test section can be non-standard customized according to customer needs.

Specifications
